Hình ảnh 4K siêu rõ nét với góc ảnh linh hoạt

Điều chỉnh linh hoạt góc nhìn (FOV) để phù hợp với hoàn cảnh của chúng ta. Được trang bị chức năng FOV kép, AVer VB130 đảm bảo người xem luôn tập trung vào đúng điểm và cho phép bạn trải nghiệm hình ảnh 4K linh hoạt trong các phòng ban hoặc phòng họp nhỏ.


90°
VB130
120°
VB130

Luôn xuất hiện tràn đầy năng lượng thông qua hệ thống chiếu sáng thông minh

Trông năng động và chuyên nghiệp trên màn hình cho dù bạn ở đâu. AVer VB130 tự động điều chỉnh mức độ ánh sáng trong các cuộc họp trực tuyến trong phòng tối* và VB130 cũng cung cấp đầy đủ dải màu (2700–5700K) để phù hợp với mọi môi trường. Hiển thị điểm họp của bạn một cách tốt nhất qua hệ thống đèn chiếu sáng thông minh AVer.

* Để có kết quả chiếu sáng tốt nhất, hãy ngồi cách máy ảnh trong vòng 1 mét.

VB130
Không có giọng nói
Audio Fence
VB130

Họp trực tuyến không gián đoạn với hàng rào âm thanh của AVer

Đảm bảo bạn có trải nghiệm họp trực tuyến không bị gián đoạn với hàng rào âm thanh của VB130. Công nghệ chặn tiếng ồn của AVer cung cấp một hàng rào âm thanh có thể điều chỉnh cho phép bạn tắt tiếng bất kỳ âm thanh nào bên ngoài góc nhìn. Duy trì sự tập trung vào cuộc họp trực tuyến để tận dụng mọi cơ hội kinh doanh.
Audio Fence Upgraded Audio Fence

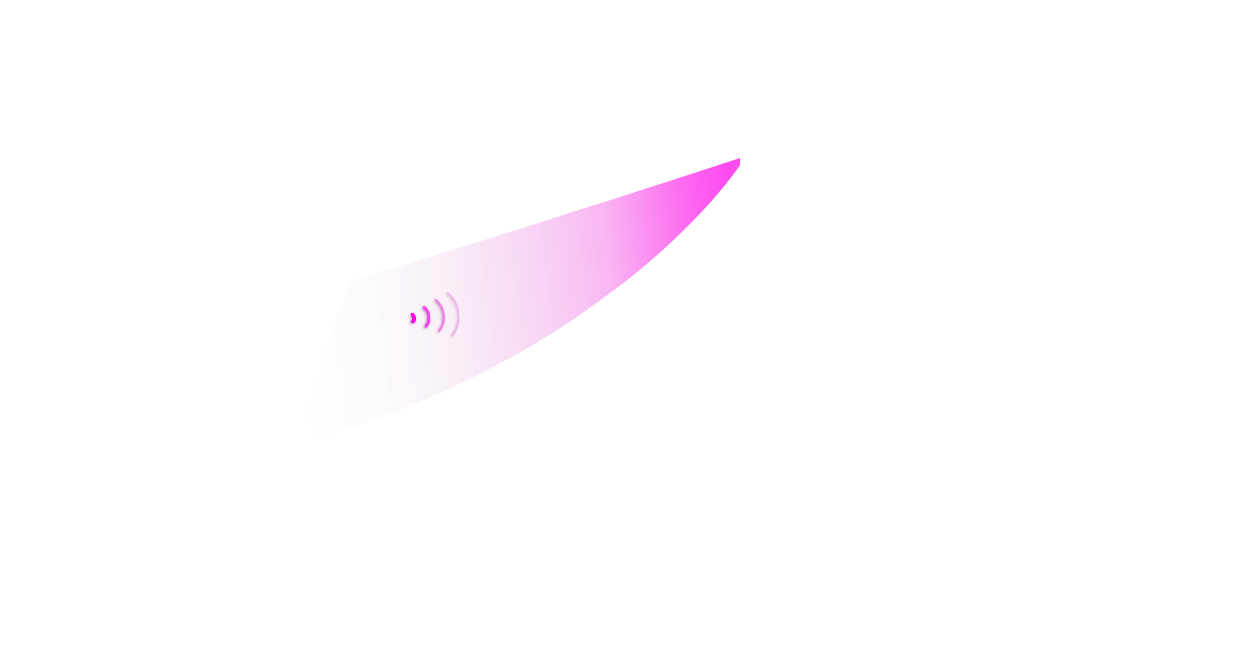

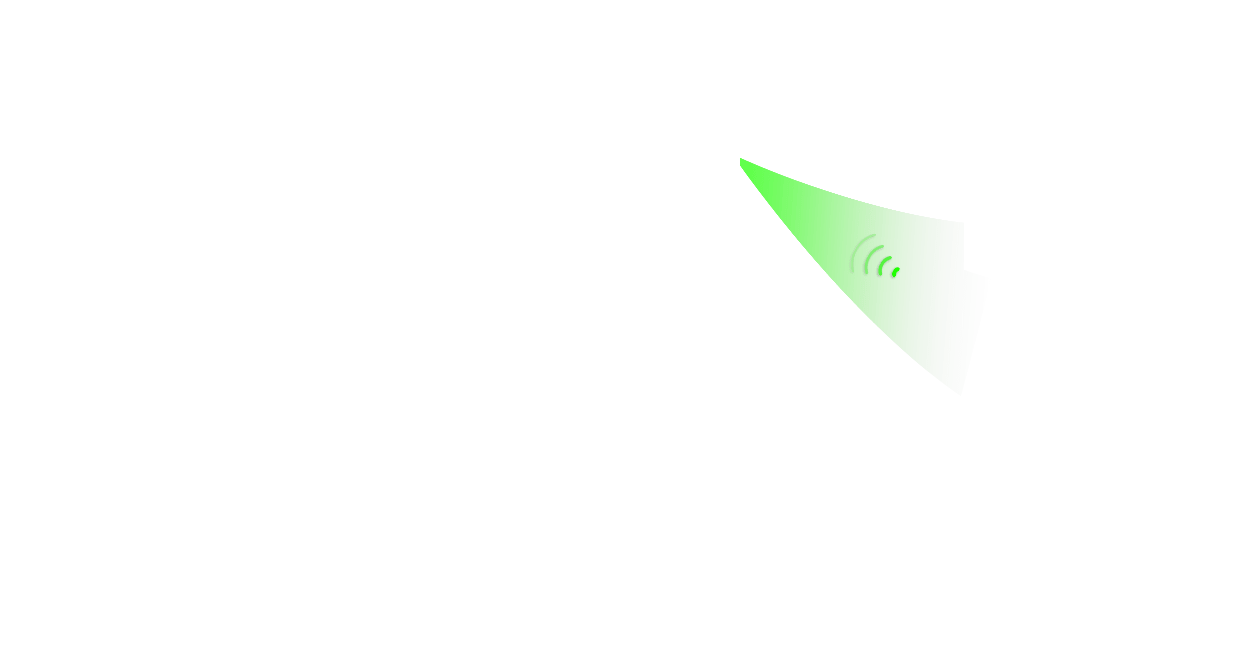

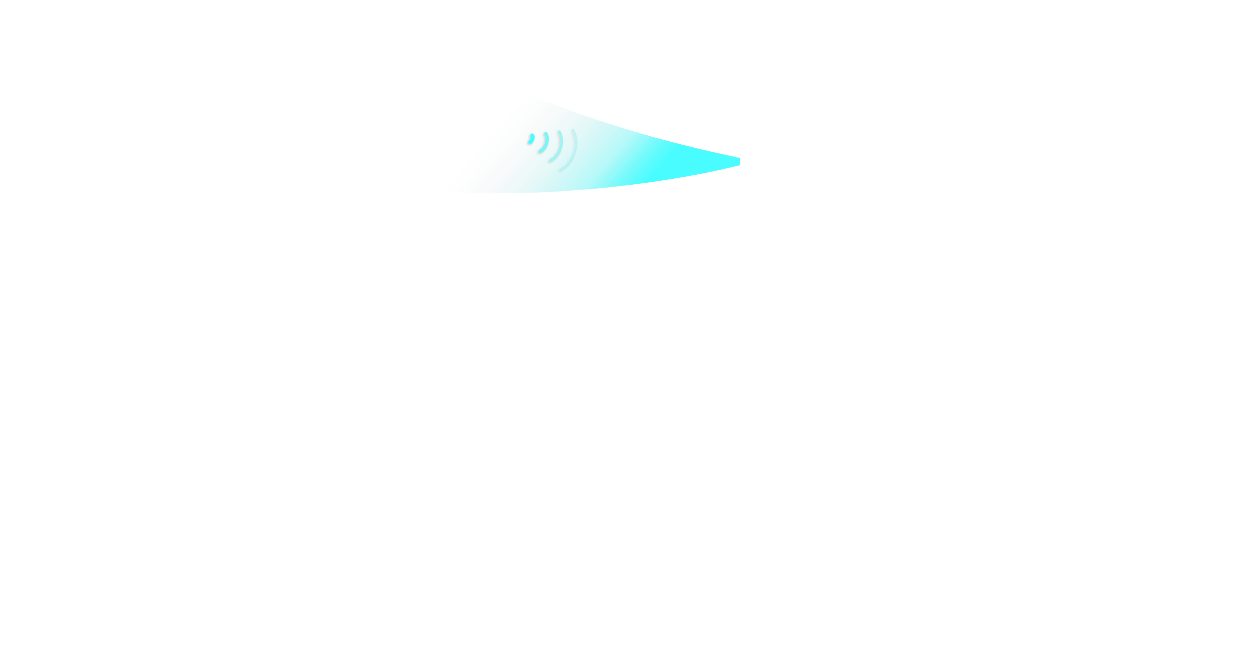

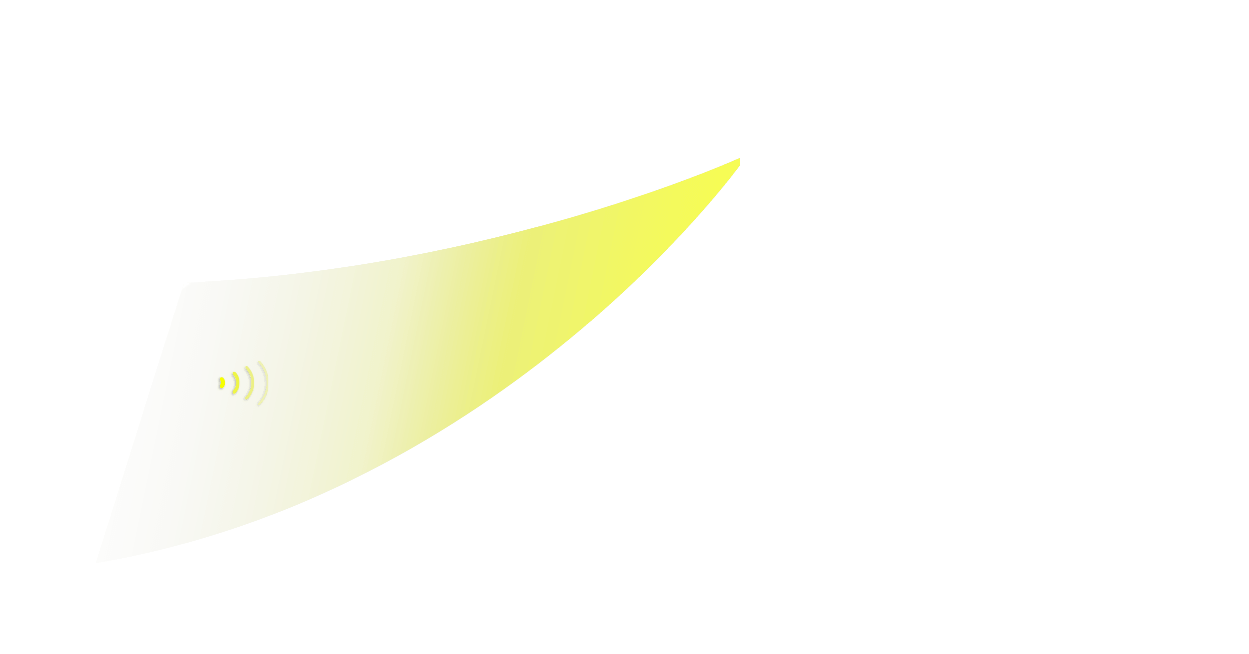

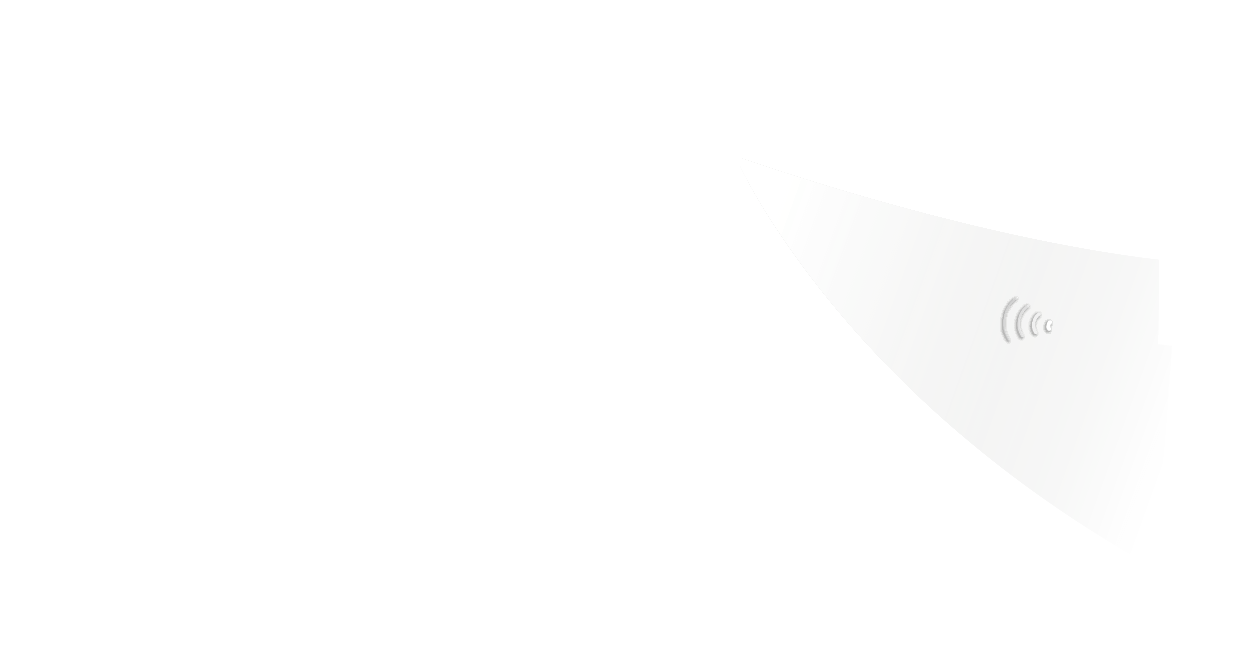

Chất lượng âm thanh vượt trội qua công nghệ Beamforming

Mọi người đều là những người tham gia chính trong các cuộc họp với AVer VB130. Một hàng năm micro sẽ thu âm và tái tạo chính xác giọng nói vang dội từ mọi nơi trong phòng.

VB130

Các cuộc họp trực tuyến hiệu quả và an toàn với ít động chạm hơn

Tận hưởng ít chạm hơn và tăng hiệu quả với điều chỉnh góc nhìn mới nhất do AI kích hoạt. Chức năng theo dõi âm thanh (audio tracking) của camera tự động tập trung vào người đang nói. Thêm vào đó, Chế độ theo dõi cài đặt trước âm thanh xác định và theo dõi giọng nói của con người để theo dõi dựa trên các khu vực đặt trước. Luôn hoạt động hiệu quả và an toàn với AVer VB130!
Manual Framing + Auto Framing Presentation mode Audio Tracking Audio Framing Audio Preset Tracking

VB130
VB130
Các thương hiệu khác
VB130
VB130
Không có tiếng ồn
Tiếng người
Tiếng người
Tiếng người
VB130 VB130 VB130
VB130

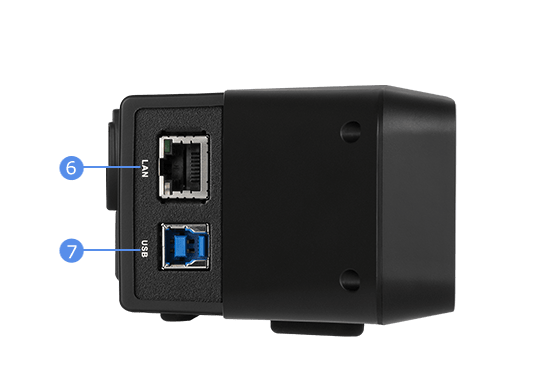

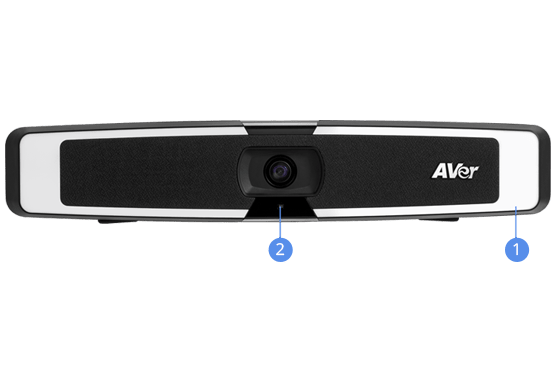

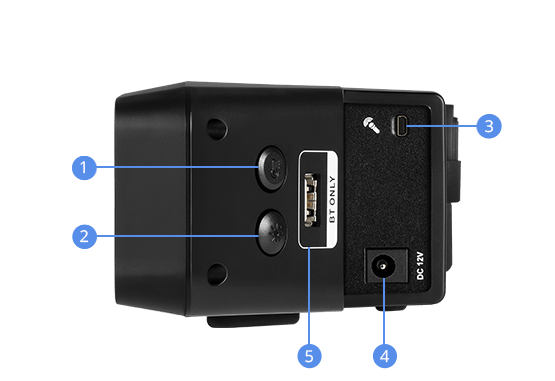

Hardware Spec

  • 1Fill light
  • 2Color sensor
  • 1Color temperature Button
  • 2Light level Button
  • 3Expansion microphone port
  • 4DC 12V
  • 5USB Type A (wireless dongle only)
  • 6LAN
  • 7USB Type-B (device to PC)

Đặc tính kỹ thuật

  • Camera
    • 4K optics lens, 120° FOV, up to 5X zoom*
    • Sony 4K sensor: ultra-crystal-clear image in any lighting
    • Frame rates: (16:9) 4K, 1920 x 1080, 1600 x 900, 1280 x 720, 960 x 540, 848 x 480, 800 x 448, 640 x 360, at 60, 30, 15fps; (4:3) 1280 x 960, 800 x 600, 640 x 480 at 60, 30, 15fps
    • Adjustable audio fence: freedom to define your meeting area
    • Intelligent fill light: Automatically adjust lighting level to make you look energetic in virtual meetings in a dim environment**
    • SmartFrame: automatic FOV adjustment to fit all participants
    • SmartSpeaker: Voice triggered tracking people or specific preset areas.
    • True WDR up to 120db: 3D noise-reduction and superb backlight compensation optimize lighting in high-contrast conditions
    • Mirror, flip, AE, white balance: auto/manual override via PTZApp2
    • Minimum focus distance: 60 cm
    • People-counting API: enterprises and third-party software providers can obtain people-counting data for better understanding of meeting-space usage
    • 10 camera presets (through remote control and IP web page)
    *Please use PTZApp 2 to set up 5X zoom.
    *The best lighting distance is for people sitting within 1meter far from the camera
  • Audio
    • Beamforming microphone array: 5 microphones, 5 m pickup range
    • Echo cancellation and background noise suppression
    • Supports expansion microphone
    • 6Wx1 speaker with professional bass port tuned for communication
    • 180Hz – 20kHz Speaker frequency response
    • Output volume: 94dB SPL +/-2dB at 0.5 meter
  • Connectivity
    • 12V/2A power adapter
    • Mini-B for expansion microphone connection
    • USB Type-B 3.1 connector, backward compatible with USB 2.0
    • RJ45 port for Ethernet
    • USB 2.0 Type-A for wireless connection*
    *Optional wireless dongle is required to connect with mobile phone
  • Video Format
    • YUV, YUY2, MJPEG
    • Network video compression format: H.264, H.265
    • Network protocols: RTSP, RTMP*
    *When USB streaming is in use, RTSP and RTMP are not available.
  • USB
    • 3.1 Gen 1, backward compatible with USB 2.0
    • UVC 1.1 (USB video), UAC 1.0 (USB audio), UVC1.5*
    • *UVC1.5 requires an additional firmware upgrade. Please contact technical support for more details.
  • Control
    • IR remote control
    • WebUI: IP access via Chrome browser (Chrome 76.x or later; Internet Explorer not supported)
    • UVC/UVA plug-and-play
    • PTZApp 2
  • Mount
    • Wall-mount bracket
    • Screen mount kit (optional)
    • TV VESA mount (optional)
  • Optional Accessories
    • Screen mount kit
    • TV VESA mount
    • Tripod
    • Wireless Dongle
    • 10m/20m expansion microphone
    • 10m/20m/30m USB 3.1 extension cable
    • USB 3.1 GEN1 Type-B to Type-A cable, 3 m
  • Warranty
    • Camera: 3 years
    • Accessories: 1 year
  • System Requirement
    • Windows® 7/10/11
    • Mac OS X 14.4 or later
    • Chromebox 3 version 94.0.4606.114 or later
  • Hardware Specs
    • 3.2 GHz Intel® Core™ i5-4460 processor
    • 4 GB RAM or more
    • USB 3.1 port, backward compatible with USB 2.0
  • Power Supply
    • AC 100V–240V, 50/60 Hz
    • Consumption: 12V/2A
  • Free Applications for Meeting Collaboration
    (Free Apps support on Windows® and Mac® computers)
    EZManager 2: Camera Central Management Software
    • Remotely group FW/SW upgrades, control the camera, and manage settings
    PTZApp 2: Camera Setting Software
    • View live video, people counting number, meeting interval information
    • Enable Skype for Business far-end control
    • Upgrade firmware automatically or manually
    • Control the camera
    • Set parameters and adjust the camera image
    • Diagnose operating status
    EZLive: Broadcasting Software
    • Enjoy multi-camera real-time streaming, annotating, image capturing, and video recording
  • Environmental Data
    • Operation temperature: 0 ~ 40°C
    • Operation humidity: 20% ~ 80%
    • Storage temperature: -20 ~ 60°C
    • Storage humidity: 20% ~ 80%
  • Dimensions
    • Package dimensions: 406(L)x146(W)x189(H) mm
    • Package weight: 2.358 kg
    • Camera: 350(L) x 65(H) x 75(D) mm/0.922 kg
    • Remote control: 149.72 x 42.3 x 19.29 mm/50g
  • Package Contents
    • VB130 unit
    • Power cable 10 ft (3 m)
    • USB 2.0 Type-B to Type-A Cable 15 ft (5 m)
    • QR code card
    • Wall mount
    • Remote control
    • Tripod screw
  • Compatible Applications
    • Microsoft® Teams, Skype for Business, Skype, Zoom, Google Meet™, Intel® Unite™, RingCentral, BlueJeans, V-Cube, LiveOn, CyberLink U Meeting®, TrueConf, Adobe® Connect, Cisco WebEx®, Fuze, GoToMeeting™, Microsoft® Lync™, Vidyo, vMix, WebRTC, Wirecast, XSplit

    *For 4K UHD support, please check system/hardware requirements with your software application provider. **Specifications may vary depending on countries and are subject to change without notice.

* Specifications may vary depending on countries and are subject to change without notice.

URL

Phụ kiện

  • VB130
  • PN: 04131ECOWAPW
    Power Adapter and Power Cable (3 m)
  • PN: 0412U360-ASJ
    Remote Control
  • PN: 064AUSBCFF
    USB 2.0 Type-B to Type-A Cable (5 m)
  • PN: 112AU360-A4L
    Wall Mount Kit
  • Tripod Screw
  • QR code card
  • PN: 063AUB-UBAFL
    USB Type-A to Type-C Adapter
  • (10m) 60U8D00000AE (20m) 60U8D00000AG
    10 m/20 m Expansion Microphone
  • (10m) 064AUSB−−CC5 (20m) 064AUSB−−CC6 (30m) 064AUSB−−CDS
    10 m/20 m/30 m USB 3.1 Extension Cable
  • 50U3300000AK (EU/JP/KR/RU/ZA/TH/IN/MY) 50U3300000AL(AU) 50U3300000AJ(US/TW)
    BT Dongle
  • PN: 200AU360-DLR
    Screen Mount Kit
  • PN: 064AUSBCCP
    3 m USB 3.1 Type-B to Type-A Cable
  • PN: 112AU360-A53
    TV VESA mount
  • PN: 60U3600000AB
    Tripod
  • * Please contact local authorized dealer/distributor for purchasing optional accessories.
