Đặc tính kỹ thuật

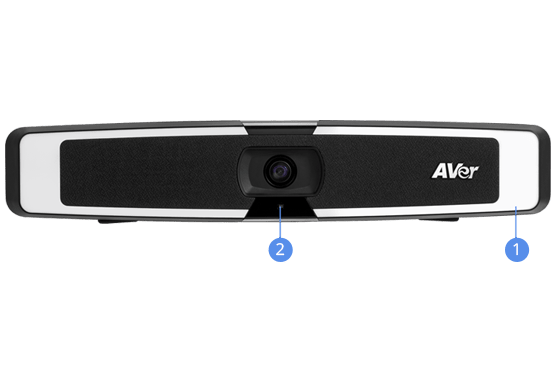

  • Camera
    • 4K optics lens, 120° FOV, up to 5X zoom*
    • Sony 4K sensor: ultra-crystal-clear image in any lighting
    • Frame rates: (16:9) 4K, 1920 x 1080, 1600 x 900, 1280 x 720, 960 x 540, 848 x 480, 800 x 448, 640 x 360, at 60, 30, 15fps; (4:3) 1280 x 960, 800 x 600, 640 x 480 at 60, 30, 15fps
    • Adjustable audio fence: freedom to define your meeting area
    • Intelligent fill light: Automatically adjust lighting level to make you look energetic in virtual meetings in a dim environment**
    • SmartFrame: automatic FOV adjustment to fit all participants
    • SmartSpeaker: Voice triggered tracking people or specific preset areas.
    • True WDR up to 120db: 3D noise-reduction and superb backlight compensation optimize lighting in high-contrast conditions
    • Mirror, flip, AE, white balance: auto/manual override via PTZApp2
    • Minimum focus distance: 60 cm
    • People-counting API: enterprises and third-party software providers can obtain people-counting data for better understanding of meeting-space usage
    • 10 camera presets (through remote control and IP web page)
    *Please use PTZApp 2 to set up 5X zoom.
    *The best lighting distance is for people sitting within 1meter far from the camera
  • Audio

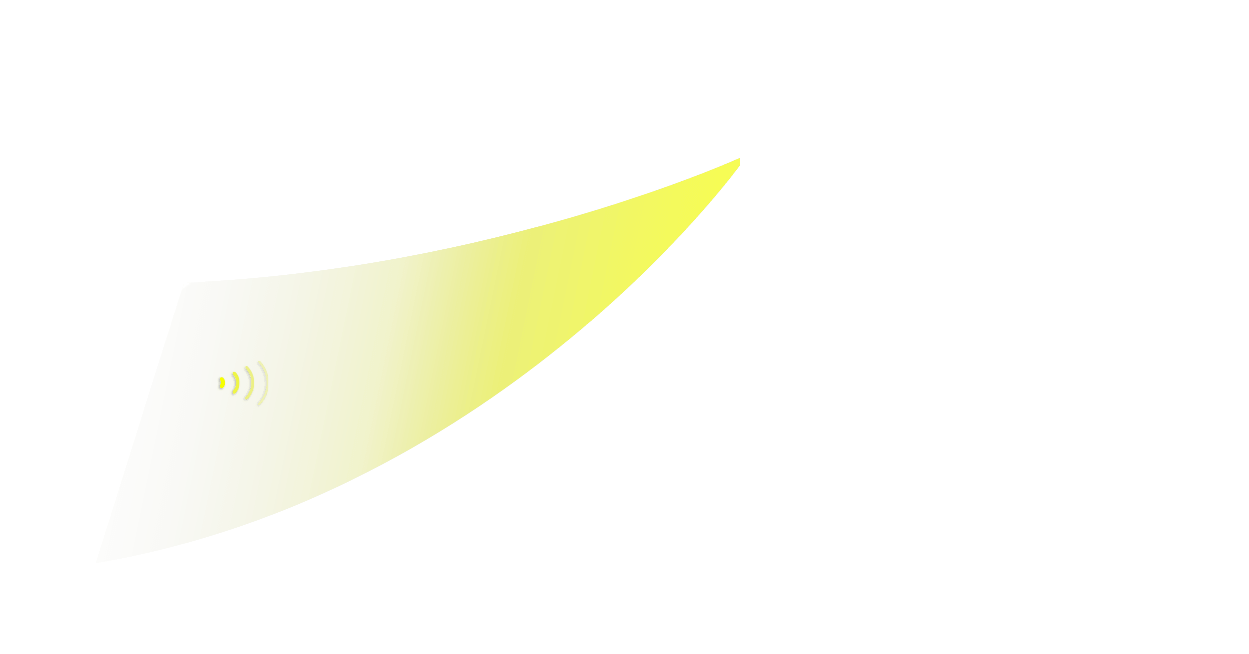

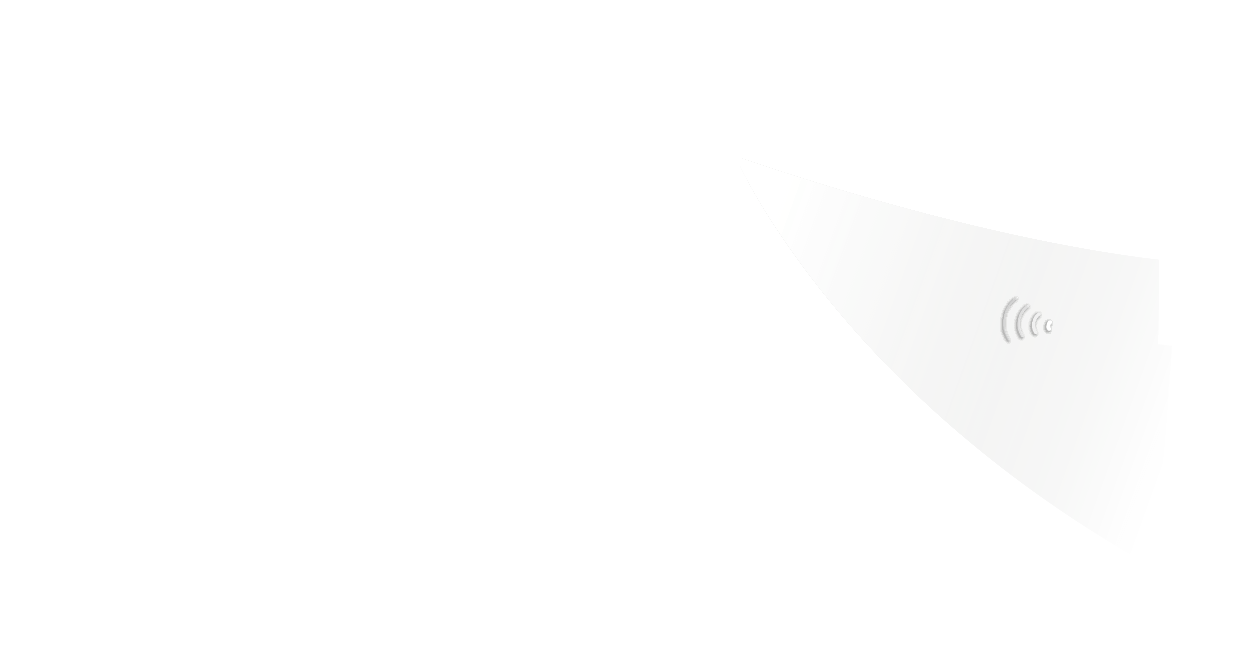

    • Beamforming microphone array: 5 microphones, 5 m pickup range
    • Echo cancellation and background noise suppression
    • Supports expansion microphone
    • 6Wx1 speaker with professional bass port tuned for communication
    • 180Hz – 20kHz Speaker frequency response
    • Output volume: 94dB SPL +/-2dB at 0.5 meter

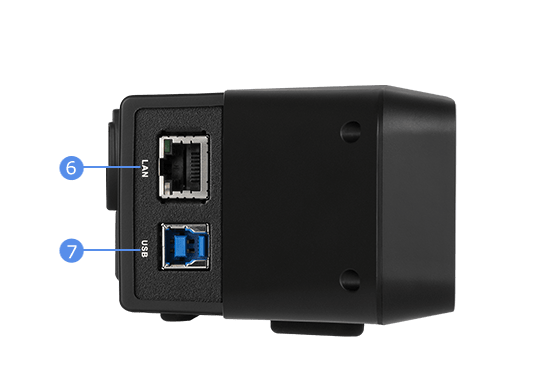

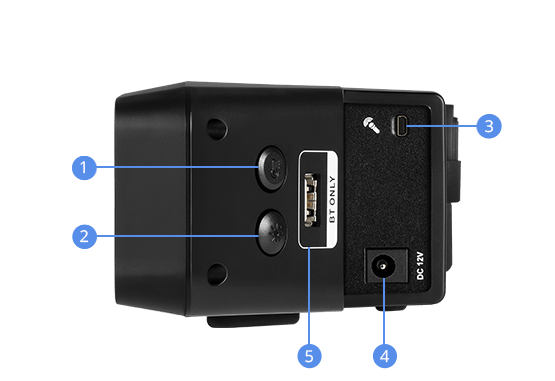

  • Connectivity
    • 12V/2A power adapter
    • Mini-B for expansion microphone connection
    • USB Type-B 3.1 connector, backward compatible with USB 2.0
    • RJ45 port for Ethernet
    • USB 2.0 Type-A for wireless connection*
    *Optional wireless dongle is required to connect with mobile phone
  • Video Format
    • YUV, YUY2, MJPEG
    • Network video compression format: H.264, H.265
    • Network protocols: RTSP, RTMP*
    *When USB streaming is in use, RTSP and RTMP are not available.
  • USB
    • 3.1 Gen 1, backward compatible with USB 2.0
    • UVC 1.1 (USB video), UAC 1.0 (USB audio), UVC1.5*
    • *UVC1.5 requires an additional firmware upgrade. Please contact technical support for more details.
  • Control
    • IR remote control
    • WebUI: IP access via Chrome browser (Chrome 76.x or later; Internet Explorer not supported)
    • UVC/UVA plug-and-play
    • PTZApp 2
  • Mount
    • Wall-mount bracket
    • Screen mount kit (optional)
    • TV VESA mount (optional)
  • Optional Accessories
    • Screen mount kit
    • TV VESA mount
    • Tripod
    • Wireless Dongle
    • 10m/20m expansion microphone
    • 10m/20m/30m USB 3.1 extension cable
    • USB 3.1 GEN1 Type-B to Type-A cable, 3 m
  • Warranty
    • Camera: 3 years
    • Accessories: 1 year
  • System Requirement
    • Windows® 7/10/11
    • MacOS 10.14 or later
    • Chromebox 3 version 94.0.4606.114 or later
  • Hardware Specs
    • 3.2 GHz Intel® Core™ i5-4460 processor
    • 4 GB RAM or more
    • USB 3.1 port, backward compatible with USB 2.0
  • Power Supply
    • AC 100V–240V, 50/60 Hz
    • Consumption: 12V/2A
  • Free Applications for Meeting Collaboration
    (Free Apps support on Windows® and Mac® computers)
    EZManager 2: Camera Central Management Software
    • Remotely group FW/SW upgrades, control the camera, and manage settings
    PTZApp 2: Camera Setting Software
    • View live video, people counting number, meeting interval information
    • Enable Skype for Business far-end control
    • Upgrade firmware automatically or manually
    • Control the camera
    • Set parameters and adjust the camera image
    • Diagnose operating status
    EZLive: Broadcasting Software
    • Enjoy multi-camera real-time streaming, annotating, image capturing, and video recording
  • Environmental Data
    • Operation temperature: 0 ~ 40°C
    • Operation humidity: 20% ~ 80%
    • Storage temperature: -20 ~ 60°C
    • Storage humidity: 20% ~ 80%
  • Dimensions
    • Package dimensions: 406(L)x146(W)x189(H) mm
    • Package weight: 2.358 kg
    • Camera: 350(L) x 65(H) x 75(D) mm/0.922 kg
    • Remote control: 149.72 x 42.3 x 19.29 mm/50g
  • Package Contents
    • VB130 unit
    • Power cable 10 ft (3 m)
    • USB 2.0 Type-B to Type-A Cable 15 ft (5 m)
    • QR code card
    • Wall mount
    • Remote control
    • Tripod screw
  • Compatible Applications
    • Microsoft® Teams, Skype for Business, Skype, Zoom, Google Meet™, Intel® Unite™, RingCentral, BlueJeans, V-Cube, LiveOn, CyberLink U Meeting®, TrueConf, Adobe® Connect, Cisco WebEx®, Fuze, GoToMeeting™, Microsoft® Lync™, Vidyo, vMix, WebRTC, Wirecast, XSplit

    *For 4K UHD support, please check system/hardware requirements with your software application provider. **Specifications may vary depending on countries and are subject to change without notice.

* Specifications may vary depending on countries and are subject to change without notice.

URL

Phụ kiện

  • VB130
  • PN: 04131ECOWAPW
    Power Adapter and Power Cable (3 m)
  • PN: 0412U360-ASJ
    Remote Control
  • PN: 064AUSBCFF
    USB 2.0 Type-B to Type-A Cable (5 m)
  • PN: 112AU360-A4L
    Wall Mount Kit
  • Tripod Screw
  • QR code card
  • PN: 063AUB-UBAFL
    USB Type-A to Type-C Adapter
  • (10m) 60U8D00000AE (20m) 60U8D00000AG
    10 m/20 m Expansion Microphone
  • (10m) 064AUSB−−CC5 (20m) 064AUSB−−CC6 (30m) 064AUSB−−CDS
    10 m/20 m/30 m USB 3.1 Extension Cable
  • 50U3300000AK (EU/JP/KR/RU/ZA/TH/IN/MY) 50U3300000AL(AU) 50U3300000AJ(US/TW)
    BT Dongle
  • PN: 200AU360-DLR
    Screen Mount Kit
  • PN: 064AUSBCCP
    3 m USB 3.1 Type-B to Type-A Cable
  • PN: 112AU360-A53
    TV VESA mount
  • PN: 60U3600000AB
    Tripod
