Phiên bản VC520 Pro2 Microsoft Teams Rooms

Phiên bản độc quyền của VC520 Pro2 này cho phép bạn bắt đầu cuộc họp ngay lập tức với nút Microsoft Teams * và đèn LED chỉ báo trạng thái. Chỉ cần chạm vào để tham gia cuộc họp và kiểm tra trạng thái cuộc gọi. Ngoài ra, bạn có thể tận hưởng trải nghiệm âm thanh luôn rõ ràng qua hai micro mở rộng đi kèm với hệ thống phiên bản đặc biệt này.

* Chỉ khả dụng cho phiên bản VC520 Pro2 Microsoft Teams Rooms, bao gồm một máy ảnh, một loa ngoài và hai micro mở rộng.

VC520 Pro22

Nhận âm thanh hoàn hảo với loa ngoài mở rộng

VC520 Pro2 cung cấp hiệu suất âm thanh cân bằng và ổn định. Là hệ thống hội nghị truyền hình đầu tiên trong ngành cung cấp chức năng daisy-chain, VC520 Pro2 hỗ trợ tối đa hai loa thoại mở rộng hoặc một dãy bốn micrô song công. Loa ngoài sáng tạo làm cho VC520 Pro2 trở thành một lựa chọn linh hoạt cho các phòng họp trực tuyến từ vừa đến lớn.

Lưu ý:
  • Không thể cùng mở rộng cả speakerphone và micrô.
  • Không thể dùng speakerphone của bộ như speakerphone rộng.

VC520 Pro2
VC520 Pro2
VC520 Pro2
Configuration
  • Max. Cable length of each combination is 40 meters, from the Camera.
VC520 Pro2
VC520 Pro2

Hỗ trợ Video và Audio với một cáp USB

Cài đặt VC520 Pro2 cực kỳ dễ dàng. Tất cả những gì bạn cần để thiết lập cuộc gọi họp trực tuyến là một cáp USB duy nhất. Kết nối trực tiếp này không chỉ tiết kiệm thời gian mà còn giữ cho bàn họp của bạn ngăn nắp và có tổ chức. Đơn giản hóa quy trình thiết lập và giảm chi phí cài đặt với VC520 Pro2.

Xem mọi chi tiết với tổng thu phóng 24X*

Trình bày sản phẩm với độ rõ nét cực cao và thể hiện mọi chi tiết với tổng mức thu phóng 24X*. VC520 Pro2 cũng tối đa hóa khả năng hợp tác nhóm với hình ảnh video mượt mà hơn bao giờ hết với chất lượng lên đến 1080p, 60 khung hình / giây.

*Vui lòng sử dụng PTZApp 2 để lắp đặt mức thu phóng 24X.

VC520 Pro2

Cải thiện An toàn & Hiệu quả Cuộc họp với SmartFrame

AVer đã phát triển chức năng SmartFrame tiên tiến phù hợp với xu hướng mới nhất. Được trang bị tính năng tự động đóng khung nâng cấp này, VC520 Pro2 có thể phát hiện và tạo khung cho những người tham gia cuộc họp ngay cả khi họ đeo khẩu trang hoặc không che khuôn mặt từ khoảng cách lên đến 7 mét. VC520 Pro2 nâng cao lợi ích mang lại và cải thiện đáng kể hiệu quả cuộc họp trực tuyến.
Auto Framing Preset Framing

VC520 Pro2
VC520 Pro2

Phát trực tuyến mọi lúc, mọi nơi

Chia sẻ diễn biến trong thời gian thực với người xem qua internet. Với hỗ trợ H.264 RTSP / RTMP, VC520 Pro2 cung cấp khả năng phát trực tuyến ổn định trên kênh yêu thích của bạn với chất lượng 1080p ở tốc độ 60pfs. Cung cấp thông tin trực tiếp cho khán giả của bạn và cập nhật tin tức mới nhất bất cứ khi nào và bất cứ nơi nào bạn muốn.

Giữ độ rõ nét tự nhiên trong mọi điều kiện ánh sáng

Không cần phải lo lắng về ánh sáng nữa! Cảm biến Sony được tích hợp trong VC520 Pro2 cho phép tính năng True WDR lên đến 120dB. Dễ dàng kiểm soát các giá trị ánh sáng của pixel và hiển thị độ rõ nét không đổi trên màn hình.

VC520 Pro2

Hardware Spec

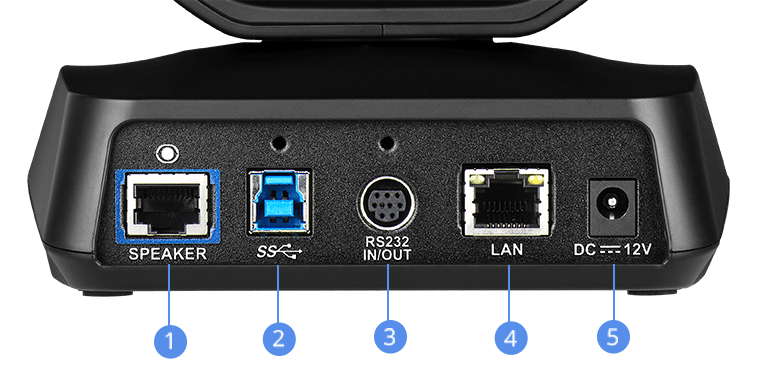

  • 1Available with VC520 Pro2 Speakerphone set
  • 2USB 3.1 Type-B
  • 3RS232 in/out
  • 4LAN for IP streaming/remote access
  • 5DC 12V

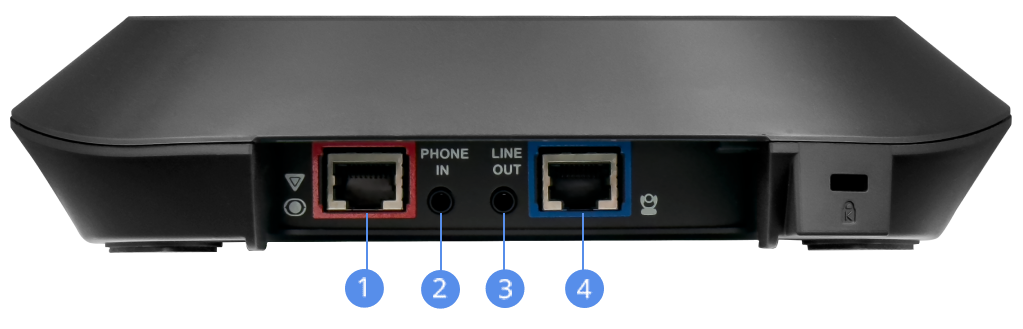

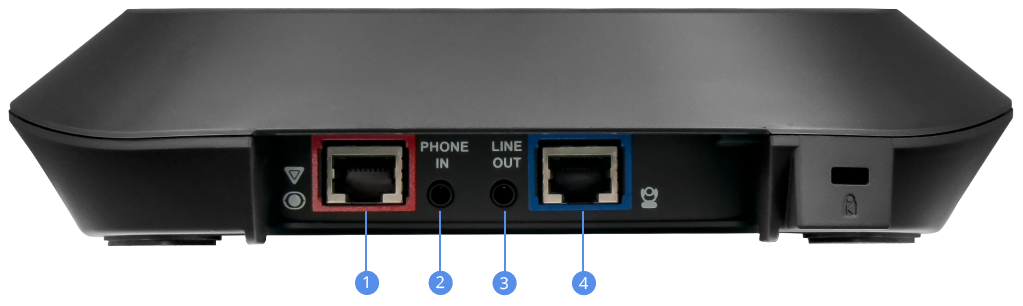

  • 1Daisy-chain up to 3 speakerphones or 4 microphones
  • 2Phone in
  • 3Line out
  • 4Available with VC520 Pro2 camera set

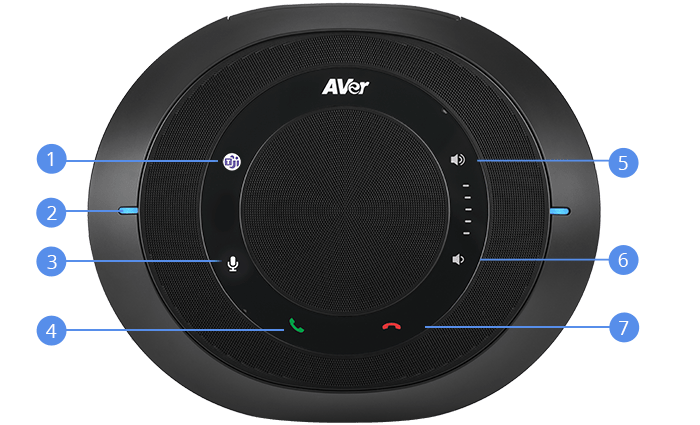

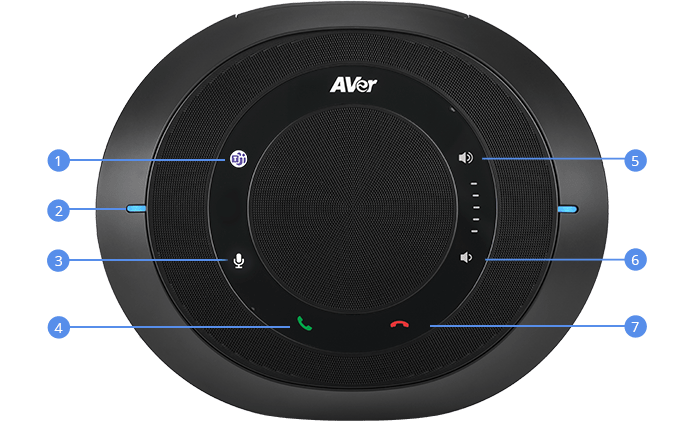

  • 1Teams embedded button
  • 2LED status indicator
  • 3Mute/Unmute
  • 4Make/Answer call
  • 5Volume up
  • 6Volume down
  • 7Hang up call

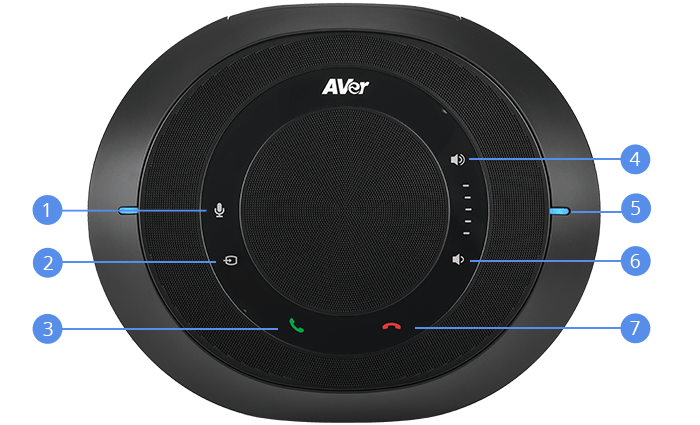

  • 1Mute/Unmute
  • 2Phone input
  • 3Make/Answer call
  • 4Volume up
  • 5LED status indicator
  • 6Volume down
  • 7Hang up call

AVerBravo

VC520 Pro2 vs. VC520 Pro
Model VC520 Pro2 VC520 Pro
Camera
Zoom Ratio 12X Optical Zoom (18X Total Zoom) 12X Optical Zoom (18X Total Zoom)
Resolution 1080p 1080p
FOV 84.5° 82°
Frame Rate USB: 1080p/60fps USB: 1080p/60fps
Video Formats M-JPEG/YUV/H.264 M-JPEG/YUV/H.264
Movement PTZ PTZ
Pan 340° (±170°) 340° (±170°)
Tilt 120° 120°
Preset 10 on remote (128 via RS232) 10 on remote (128 via RS232)
Far-Site Control Yes (only applicable to Skype for Business) Yes (only applicable to Skype for Business)
Speakerphone
Expansion Solutions Up to 3 speakerphones or 4 microphones Up to 3 speakerphones or 4 microphones
Speakerphone I/O Phone in/Line out Phone in/Line out
Advanced Features
SmartFrame Yes (Auto framing, Preset framing) Yes (Auto Framing)
WDR True WDR True WDR
IP Streaming Yes (RTSP/RTMP) Yes (RTSP/RTMP)
RS232 Yes (RS232 in/out) Yes (RS232 in/out)

Đặc tính kỹ thuật

  • Camera
    • Sony super-low-light 2M pixel sensor for clear and natural imaging in low-light conditions
    • Resolution: (16:9) 1920 x 1080, 1600 x 900, 1280 x 720, 960 x 540, 848 x 480, 800 x 448, 640 x 360, 424 x 240, 320 x 180; (4:3) 800 x 600, 640 x 480, 480 x 360, 320 x 240 at 60, 30, 15fps
    • SmartFrame for automatic FOV adjustment to fit all participants
    • Smart Gallery* function offers great visibility for individual participant in the meeting room
    • Innovative Preset Framing: Follow presenter based on preset areas
    • True WDR up to 120dB: Super backlight compensation technology for optimizing light balance in high-contrast conditions
    • Zoom: 24X* total zoom (12X optical zoom)
    • Field of view(D/H/V): 84.5°/76°/48°
    • Lens focal length: 3.9 mm (wide) ~ 47.3 mm (tele)
    • Lens F#: 1.8 (wide) ~ 2.8 (tele)
    • Mirror, Flip, AE, white balance: auto, manual override via PTZApp 2
    • Minimum focus distance: 1.5 m
    • Standard tripod screw holes and Kensington slot
    • People-counting API: enterprises and third-party software providers can obtain people-counting data for better understanding of meeting-space usage
    *Please use PTZApp 2 to set up Smart Gallery and 24X zoom.
  • Motorized Pan & Tilt Movement
    • Pan: ±170°
    • Tilt: +90° (up) -30° (down)
    • 10 camera presets (via remote control)
    • Fast and quiet pan & tilt movement
  • Video Format
    • YUV, YUY2, MJPEG, NV12
    • Network video compression format: H.264, H. 265
    • Network protocols: RTSP, RTMP
  • Speakerphone
    • Full duplex microphone array with echo cancellation
    • Advanced noise suppression
    • Dual-microphone array
    • 3.5 mm phone-in jack
    • 3.5 mm line out
    • Speaker: 6W, Adjustable to 90dB SPL at 0.5 m
    • Touch controls for volume down/up, mute, phone input (Microsoft Teams SKU w/o this function), call, hang-up, and, Teams button*
    • Bridge phone-in and USB into one call
    • Security: Kensington slot
    * Only available for the VC520 Pro2 Microsoft Teams edition
  • Audio Format
    • AAC-LC
    • Network protocol: RTSP, RTMP
  • Connectivity
    • 12V/5A power adaptor
    • Mini DIN9 for RS232 in & out connection (VISCA control panel and camera daisy-chain)
    • USB 3.1 Type-B connector
    • IP (RJ45)
  • Environmental Data
    • Operation temperature: 0°C ~ 40°C
    • Operation humidity: 20% ~ 80%
    • Storage temperature: -20°C ~ 60°C
    • Storage humidity: 20% ~ 80%
  • Dimensions
    • Package dimensions: 259 x 259 x 349 mm
    • Package weight: 5.4 kg
    • Camera: 142.7 x 153 x 182 mm/1.45 kg
    • Speakerphone: 220 x 181.5 x 49.5 mm/0.85 kg
    • Remote control: 200 x 50 x 21 mm/0.09 kg
  • Package Contents
    • VC520 Pro2 Camera
    • VC520 Pro Speakerphone
    • Remote control
    • Power adapter
    • Power cord (6 ft/1.8 m)
    • USB2.0 type-B to type-A cable (16.5 ft/5 m)
    • Camera to Speakerphone Cable (33ft/ 10m)
    • 3.5 mm aux cable (3 ft/0.9 m)
    • QR code card
    • Wall-mount bracket
    • ¼" tripod screw
  • USB
    • 3.1 Gen 1 Type-B, backward compatible with USB 2.0
    • UVC (USB video class) 1.1
    • UAC (USB audio class) 1.0
    • UVC1.5
    *UVC1.5 requires an additional firmware upgrade. Please contact technical support for more details.
  • Control
    • IR remote control
    • VISCA/Pelco-P/Pelco-D via RS232 (128 preset points via VISCA command)
    • Remote side: VISCA over IP, IP (RJ45)
    • UVC/UAC plug-and-play
    • WebUI: Browser IP access via Chrome (does not support Internet Explorer)
    • PTZApp 2
  • Mount
    • Camera wall-mount bracket included
    • Optional foldable TV mount
    • Optional ceiling mount
  • System Requirements
    • Windows® 7/10/11
    • Mac OS X 14.4 or later
    • Google Chromebox 3 version 94.0.4606.114 or later
  • Hardware Specs
    • 3.2 GHz Intel® Core™ i5-4460 Processor or higher
    • 4 GB RAM or more
    • USB 3.1 port, backward compatible with USB 2.0 port
  • Web page browser requirement
    • Chrome: version 76.x or above
    • Firefox: version 69 or above
    • IE: Not support
  • Power Supply
    • AC 100V ~ 240V, 50/60 Hz
    • Consumption: 12V, 5A
  • Free Applications for Meeting Collaboration
    (Windows® and Mac)
    EZManager 2: Camera Central Management software
    • Remotely group FW/SW upgrades, control the camera, and configure settings
    PTZApp 2
    • Smart Gallery/ Virtual USB streaming/ Preset Link
    • Upgrade firmware automatically or manually
    • Control camera
    • Set parameters and adjust camera image
    • Diagnose operating status
    • View live video
    EZLive
    • Real-time streaming / annotating / snapshots / video recording
  • Optional Accessories
    • Mini DIN8 to D-SUB9 RS232 adapter
    • Expansion Speakerphone
    • Expansion Microphone
    • Foldable TV mount
    • USB3.1 fiber extender 10m/20m/30m
    • USB3.1 type-B to type-A cable 3m
    • Ceiling mount
  • Warranty
    • Camera / Speakerphone: 3 years
    • Accessories: 1 year
  • Compatible Applications
    • Zoom, Microsoft® Teams, Skype for Business, Skype, Google Meet, Intel® Unite™, RingCentral, BlueJeans, V-Cube, LiveOn, CyberLink U Meeting®, TrueConf, Vidyo, Adobe® Connect™, Cisco Webex®, Fuze, GoToMeeting™, Microsoft® Lync™, vMix, WebRTC, Wirecast, XSplit
    **Specifications may vary depending on countries and are subject to change without notice.

* Specifications may vary depending on countries and are subject to change without notice.

URL

Accessories

  • VC520 Pro2 Camera
    VC520 Pro2 Camera
  • VC520 Pro2 Speakerphone
    VC520 Pro2 Conference Speakerphone
  • Remote Control PN:412U340-ASB
    Remote Control
  • Power Adapter PN:04131HGOOARC
    Power Adapter
  • USB2.0 type-B to type-A cable (16.5 ft/5 m) PN: 064AUSBCFG
    USB2.0 type-B to type-A cable (16.5 ft/5 m)
  • Camera to Speakerphone Cable (33 ft/10 m) PN: 064AOTHERCD3
    Camera to Speakerphone Cable (33 ft/10 m)
  • Power cord (6 ft/1.8 m)
    Power cord (6 ft/1.8 m)
  • 3.5 mm aux cable (3 ft/0.9 m) PN: 064AAUDIOCBS
    3.5 mm aux cable (3 ft/0.9 m)
  • Wall-mount bracket PN:112AU340-A6B PN:112AU340-A6C PN:100AAAAAAAMD*2
    Wall-mount bracket
  • ¼
    ¼" tripod screw
  • QR Code Card
    QR Code Card
  • Expansion Speakerphone PN: 60U0100000AB
    Expansion Speakerphone
  • Expansion Microphone PN:60U0100000AC
    Expansion Microphone
  • Mini DIN8 to D-SUB9 RS232 adapter PN: 064AOTHERBPK
    Mini DIN8 to D-SUB9 RS232 adapter
  • USB3.1 fiber extender 10m/20m/30m 10M - PN: 064AUSB−−CC5 20M - PN: 064AUSB−−CC6 30M - PN: 064AUSB−−CDS
    USB3.1 fiber extender 10m/20m/30m
  • Ceiling Mount PN: 112AV8U2-A5A
    Ceiling Mount
  • Mini DIN9 to MinDIN8 RS232 adapter PN:064AOTHERCGR
    Mini DIN9 to MinDIN8 RS232 adapter
  • USB3.1 type-B to type-A cable 3m PN:064AUSBCDD
    USB3.1 type-B to type-A cable 3m
  • Foldable TV Mount PN: 60V2C10000A7
    Foldable TV Mount
  • * Please contact local authorized dealer/distributor for purchasing optional accessories.
  • *Vui lòng tham khảo cấu hình speakerphone / microphone mở rộng trước khi mua các thiết bị này. (Xem hướng dẫn sử dụng VC520 Pro để biết thêm chi tiết.)
