Tính năng

AVerBravo

CAM520 Pro2 vs. CAM520 Pro
Model CAM520 Pro2 CAM520 Pro
Camera
Zoom Ratio 12X Optical Zoom (18X Total Zoom) 12X Optical Zoom (18X Total Zoom)
Resolution 1080p 1080p
FOV 84.5° 82°
Frame Rate USB: 1080p/60fps USB: 1080p/60fps
Video Formats M-JPEG/YUV/H.264 M-JPEG/YUV/H.264
Pan 340° (±170°) 340° (±170°)
Tilt 120° 120°
Preset 10 on remote (128 via RS232) 10 on remote (128 via RS232)
Far-Site Control Yes (only Skype for Business) Yes (only Skype for Business)
Advanced Features
SmartFrame Yes (Auto Framing, Preset Tracking) Yes (Auto Framing)
WDR True WDR True WDR
IP Streaming Yes (RTSP/RTMP) Yes (RTSP/RTMP)
RS232 Yes (RS232 in/out) Yes (RS232 in/out)
PoE Yes No

Đặc tính kỹ thuật

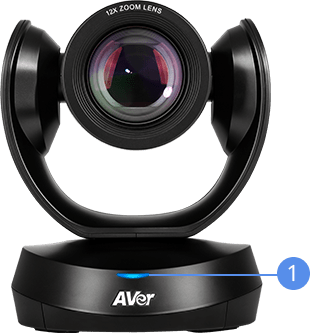

  • Camera
    • Sony super-low-light 2M pixel sensor, clear and natural imaging in low-light conditions
    • Resolution: (16:9) 1920 x 1080, 1600 x 900, 1280 x 720, 960 x 540, 848 x 480, 800 x 448, 640 x 360, 424 x 240, 320 x 180; (4:3) 800 x 600, 640 x 480, 480 x 360, 320 x 240 at 60, 30, 15fps
    • SmartFrame for automatic FOV adjustment to fit all participants
    • Smart Gallery* function offers great visibility for individual participant in the meeting room
    • Innovative Preset Framing: Follow presenter based on preset areas
    • True WDR up to 120db: Superb backlight compensation technology for optimizing light balance in high-contrast conditions
    • Zoom: 24X* total zoom (12X optical zoom)
    • Field of view(D/H/V):84.5°/76°/48°
    • Lens focal length: 3.9 mm (wide) ~ 47.3 mm (tele)
    • Lens F#: 1.8 (wide) ~ 2.8 (tele)
    • Mirror, flip, AE, white balance: auto/manual override via PTZApp 2
    • Minimum focus distance: 1.5 m
    • Standard tripod screw holes and Kensington slot
    • People-counting API: enterprises and third-party software providers can obtain people-counting data for better understanding of meeting-space usage
    *Please use PTZApp 2 to set up Smart Gallery and 24X zoom.
  • Motorized Pan & Tilt Movement
    • Pan: ±170°
    • Tilt: +90° (up) -30° (down)
    • 10 camera presets (via remote control)
    • Fast and quiet pan/tilt movement
  • Video Format
    • YUV, YUY2, MJPEG, NV12
    • Network video compression format: H.264
    • Network protocol: RTSP, RTMP

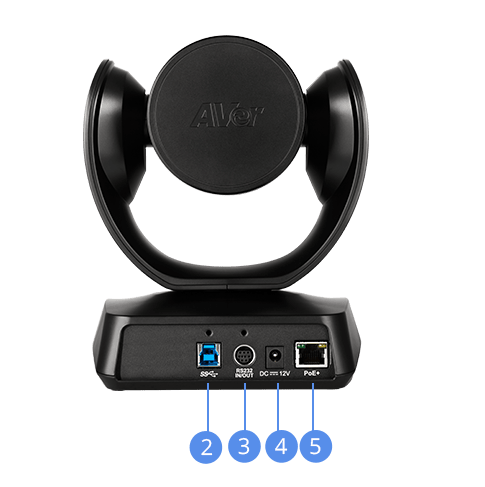

  • Connectivity
    • 12V/2A power adaptor
    • Mini DIN9 for RS232 in & out connection (VISCA control panel and camera daisy chain)
    • USB 3.1 type-B connector
    • IP (RJ45)
  • USB
    • 3.1 Gen1 Type B, backward compatible with USB 2.0
    • UVC (USB video class) 1.1, UVC1.5*
    *UVC1.5 requires an additional firmware upgrade. Please contact technical support for more details.
  • Control
    • IR remote control
    • VISCA/pelco P/pelco D via RS232 (128 preset points via VISCA command)
    • Remote side: VISCA over IP, IP (RJ45)
    • UVC/UAC plug and play
    • WebUI: Browser IP access via Chrome (Does not support Internet Explorer)
    • PTZApp 2
  • Package Contents
    • CAM520 Pro2 unit
    • Remote control
    • 5m, USB2.0 type-B to type-A cable
    • Power adapter (10 ft/3 m)
    • QR code card
    • Wall-mount bracket
    • ¼" tripod screw
    • Mini DIN9 to mini DIN8 RS232 adapter
  • Optional Accessories
    • Mini DIN8 to D-SUB9 RS232 adapter
    • Foldable TV mount
    • Ceiling mount
    • USB3.1 fiber extender 10m/20m/30m
    • USB3.1, 3m type-B to type-A cable
  • Mount
    • Camera wall-mount bracket included
    • Optional foldable TV mount
    • Optional ceiling mount
  • System Requirements
    • Windows® 7/10/11
    • MacOS 10.14 or later
    • Google Chromebox 3 version 94.0.4606.114 or later
  • Hardware Specs*
    • 3.2 GHz Intel® Core™ i5-4460 processor
    • 4 GB RAM or more
    • USB 3.1 port , backward compatible with USB2.0 port
  • Web page browser requirement
    • Chrome: version 76.x or above
    • Firefox: version 69 or above
    • IE: Not support
  • Power Supply
    • AC 100V ~ 240V, 50/60 Hz
    • Consumption: 12V, 2A
    • PoE+: 802.3at
  • Free Applications for Meeting Collaboration (Windows® and MAC)
    EZManager 2 : Camera Central Management software
    • Remotely manage group FW/SW updates, camera control, and settings
    PTZApp 2
    • Smart gallery/ Virtual USB streaming/ Preset Link
    • Support Virtual Streaming function.*
    • Compatible with Skype for business far-end control
    • Upgrade firmware automatically or manually
    • Control camera
    • Set parameters and adjust camera image
    • Diagnose operating status
    • View live video
    EZLive
    • Real-time streaming / annotating / image capturing / video recording

    *Only available in Windows PC. Doesn't support in MAC PC.
  • Environmental Data
    • Operation temperature: 0°C ~ 40°C
    • Operation humidity: 20% ~ 80%
    • Storage temperature: -20°C ~ 60°C
    • Storage humidity: 20% ~ 80%
  • Dimensions
    • Package dimensions: 256 x 256 x 274 mm
    • Package weight: 3.335 kg/7.35 lbs
    • Camera: 182 x 142.7 x 153 mm/1.47 kg
    • Remote control: 200 x 50 x 21 mm/0.09 kg
  • Warranty
    • Camera: 3 years
    • Accessories: 1 year
  • Compatible Applications
    • Zoom, Microsoft® Teams, Skype for Business, Skype, Google Meet, Intel® Unite™, RingCentral, BlueJeans, V-Cube, LiveOn, CyberLink U Meeting®, TrueConf, Adobe® Connect™, Cisco Webex®, Fuze, GoToMeeting™, Vidyo, vMix, WebRTC, Wirecast, XSplit
    ** Specifications may vary depending on countries and are subject to change without notice.

* Specifications may vary depending on countries and are subject to change without notice.

URL

Accessories

  • CAM520 Pro2 Camera
    CAM520 Pro2 Camera
  • Power Adapter (3 m) PN: 04131EGOOASG
    Power Adapter (3 m)
  • USB2.0, Type-B Cable (5 m) PN: 064AUSB−−CFG
    USB2.0, Type-B Cable (5 m)
  • Mini DIN9 to MinDIN8 RS232 adapter PN:064AOTHERCLM
    Mini DIN9 to MinDIN8 RS232 adapter
  • Remote Control PN:0412U340-ASB
    Remote Control
  • Wall Mount PN:112AU340-A6B PN:112AU340-A6C PN: 100AAAAAAAMD*2
    Wall Mount
  • Tripod Screw
    Tripod Screw
  • QR code card
    QR code card
  • Ceiling Mount PN: 112AV8U2-A5A
    Ceiling Mount
  • 3 m USB 3.1 Type-B to Type-C Cable PN:064AUSB−−CDD
    3 m USB 3.1 Type-B to Type-C Cable
  • 10m USB 3.1 Extension Cable PN: 064AUSB−−CC5
    10m USB 3.1 Extension Cable
  • 20m USB 3.1 Extension Cable PN: 064AUSB−−CC6
    20m USB 3.1 Extension Cable
  • 30m USB 3.1 Extension Cable PN: 064AUSB−−CDS
    30m USB 3.1 Extension Cable
  • 1-port POE+ injector PN: 50U1000000AC
    1-port POE+ injector
  • Foldable TV Mount PN: 60V2C10000A7
    Foldable TV Mount
  • MiniDIN8 to D-Sub9 RS232 cable PN:064AOTHERCGN
    MiniDIN8 to D-Sub9 RS232 cable
  • FONE540 USB speakerphone PN: 61U6100000AD
    FONE540 USB speakerphone
