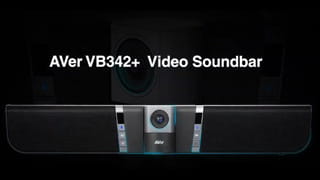

VB342+
Video Soundbar

• Camera

  • Sony Exmore sensor: Ultra crystal-clear image support up to 4K
  • Frame rate: 4K 30fps; 1080p, 720p, 960 x 540, 848 x 480, 800 x 448, 640 x 480, 640 x 360, 424 x 240, 320 x 240, 320 x 180 at 60, 30, 15fps
  • SmartFrame & SmartSpeaker: Automatic FOV adjustment to fit all participants and focus on the speaker
  • 120° wide field of view
  • True WDR up to 120 db: Superb back light compensation technology for optimizing light balance in high-contrast conditions
  • Digital zoom rate up to 4X leveraging 4K sensor
  • 3D denoise technology maintains clear and natural imaging in low light conditions
  • Mirror, AE, white balance: Auto, manual override via PTZApp
  • Minimum focus distance: 80 cm
  • Analytics API: Enterprises and third-party software providers can obtain people-counting data for better understanding of meeting-space usage

• Motorized Pan and Tilt Movement

  • Pan: Total horizontal viewing area 180°
  • Tilt: Total vertical viewing area 105°
  • 10 camera presets (through remote control)
  • Fast and quiet pan & tilt movement

• Audio

  • Microphones: 2 unidirectional microphones supporting 6 m pickup
  • 5Wx2 stereo full range speakers with professional bass port tuned for communication
  • Volume up to 96 dB SPL at 1/2 meter
  • Echo cancellation
  • Noise suppression
  • 3.5 mm Line-in (aux) cable connects BYOD smartphones or PCs as speakerphones

• HDMI

  • DisplayLink: Built-in USB 3.1 (Gen 1) to HDMI adapter
  • 1080p HDMI output to TV**


  ** Win7/8 OS: Must install DisplayLink driver via AVer PTZApp

• Connectivity

  • 12V/5A power adaptor
  • Mini DIN6 for RS232 connection
  • USB type C connector
  • HDMI out connection (DisplayLink)
  • Phone in (3.5 mm audio jack)
  • Mic input
  • Wireless connection with mobile devices**


  **Wireless function is not supported in the USA and some other countries. Please contact a local agent for details.
  **Wireless connection does not support wireless speakerphone devices.

• Video Format

  • YUV, YUY2, M-JPEG

• USB

  • 3.1 Gen 1, backward compatible USB 2.0
  • UVC (USB Video Class) 1.1

• Control

  • IR remote control
  • VISCA/pelco P/pelco D via RS232
  • UVC/UVA plug-and-play
  • PTZApp

• Security and Mount

  • Camera wall-mount bracket included

• System Requirements

  • Windows 7/10/11
  • Mac OS X 14.4 or later
  • Chromebox 3 version 94.0.4606.114 or later

• Hardware Specs*

  • 2.4 GHz Intel^® Core™2 Duo processor
  • 2 GB RAM or more
  • USB 3.1 Gen1 port (supports 4K); USB 2.0 port (supports up to 1080p)

• Power Supply

  • AC 100V~240V, 50/60 Hz
  • Consumption: 12V, 5A

• Free Applications for Meeting Collaboration
  (Free app support on Windows^® and Mac computers)

  EZManager: Camera Central Management Software

  • Remotely group FW/SW upgrades, control the camera, and manage settings

  PTZApp

  • Compatible with Skype plugin for answering and hanging up via remote control
  • Upgrade firmware automatically or manually
  • Control the camera
  • Set parameters and adjust the camera image
  • Diagnose operating status
  • View live video

  EZLive

  • Real-time streaming / annotating / image capturing / video recording

• Environmental Data

  • Operation temperature: 0°C~40°C
  • Operation humidity: 20%~80%
  • Storage temperature: -20°C~60°C
  • Storage humidity: 20%~80%

• Dimensions

  • Package dimensions: 739 x 193 x 229 mm
  • Package weight: 4.16 kg/9.3 lbs
  • Camera: 650 x 100 x 109.5 mm/2.133 kg
  • Remote control: 200 x 50 x 21 mm/0.09 kg

• Package Contents

  • VB342+ unit
  • Power cable 10 ft (3 m)
  • USB 3.1 type-C to type-A Cable 6 ft (1.8 m)
  • USB 3.1 type-A to type-C adapter
  • Quick-start guide
  • Wall-mount bracket and screws
  • Warranty card
  • Remote control
  • Battery

• Optional Accessories

  • Mini DIN6 to RS232 adapter
  • TV mount and mounting screws
  • 33 ft (10 m) expansion microphone
  • 66 ft (20 m) expansion microphone
  • 33 ft (10 m) USB 3.1 extension cable
  • 66 ft (20 m) USB 3.1 extension cable
  • 16 ft (5 m) USB 2.0 cable

• Warranty**

  • Camera: 3 years
  • Accessories: 1 year




• Compatible Applications

  • Zoom, Microsoft^® Teams, Skype for Business, Skype, Google Hangouts, Intel^® Unite™, RingCentral, BlueJeans, V-Cube, LiveOn, CyberLink U Meeting^®, TrueConf, Adobe Connect, Cisco WebEx^®, Fuze, GoToMeeting™, Microsoft^® Lync™, Vidyo, vMix, WebRTC, Wirecast, XSplit


  *For 4K UHD support, please check system/hardware requirements with your software application provider.

• 1DC 12V
• 2USB port (to PC)
• 3RS232
• 4Phone In

• 5Mic
• 6HDMI Out
• 7Reset

Model	VB342+	VB342

Camera
Zoom Ratio	4Xdigital zoom	4xdigital zoom
Resolution	4K2K	4K2K
FOV (diagonal)	120°	94°
Frame Rate	4k@30fps, 1080p@60fps	4k@30fps, 1080p@60fps
Movement	PTZ (Digital Zoom)	PTZ (Digital Zoom)
Mechanical Pan	180°(±40°)	165°(±40°)
Mechanical Tilt	105°(±15°)	85°(±15°)
Preset points	10	10
True WDR	Yes	No

Advance features
Auto frame	Yes	No
Audio tracking	Yes	No
Bluetooth	Yes	No
Camera management software	Yes and free	Yes and free

I/O interface
RS232	Yes	No
HDMI	Yes. DisplayLink	Yes. DisplayLink
Others	USB3, Audio in,microphone expansion	USB3, Audio in,microphone expansion

**Specifications may vary depending on countries and are subject to change without notice.
